V535 With Integrated F-Pro

FUJITSU Tablet STYLISTIC V535 Industrial and FUJITSU Biometric Authentication PalmSecure® F-Pro Sensor
The FUJITSU V535 Tablet and PalmSecure-F Pro sensor integrated into a ruggedized carrier, provides powerful computing with reliable, market-proven, biometric authentication for mobile and countertop configurations in the harshest Financial, Healthcare and Retail operating environments. Thanks to a water and dust resistant yet lightweight design, combined with a 8.3” PCAP touchscreen display with toughened glass, WLAN, Bluetooth and NFC communications, and over 5-hours Lithium battery runtime, the V535 tablet lets you stay connected from anywhere at any time.

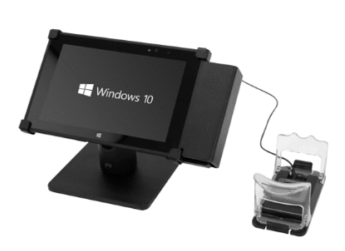

Palm Enrollment

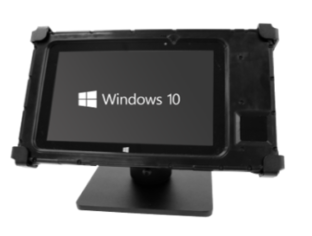

Palm Check In

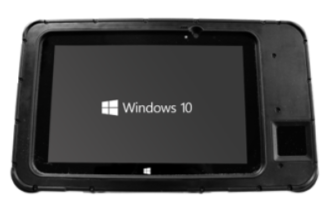

Palm Mobile

Model                                       V535 Tablet
Operating systems preinstalledWindows 10 IoT Enterprise LTSB (64 bit); Win10 is lite version that does not include MS Office applications
Hard disk64 GB Solid state hard drive
MultimediaCameraFront camera 2.0 megapixel, rear camera 8.0 megapixel with autofocus and light
Base Unit
General System InformationProcessorIntel® Atom™ Processor Z73795 (up to 2.39 GHz, 2M Cache)
ChipsetIntel® BayTrail SoC
Memory4GM memory
Integrated WLANWLAN 802.11 a/b/g/n
BIOS featuresBIOS Flash EPROM
Unified Extensible Firmware Interface (UEFI)
Audio features2x internal microphones, 2x built-in speakers (stereo)
Dust resistantIPX5
Water resistantIP6X
Drop resistantup to 1.2 m (with rugged frame)
Display8.3 inches (21.0 cm) Multi-Touch, Projected Capacitive Touchscreen, IPS, (WUXGA), Glare, 1,920 x 1,200 pixel, 800:1, 400 cd/m2
Display notesToughened glass
Sensors3-axis Accelerometer Compass
Ambient Light Sensor
Aspect ratio16:10
Brightness – typical400 cd/m2
Contrast – typical800:01:00
DigitizerMulti-touch up to 10 fingers, passive pen supported (not included)
Ambient light sensorIntegrated
Ambient light sensor notesWhile enabled, the ambient light sensor automatically adjusts the display backlight
Viewing angle (h/v) – typical160°/160°
 Base unitSTYLISTIC V535
InterfaceInternal microphones2 (digital)
Wireless technologiesAntennas2x dual band WLAN/BT, 1x NFC for dedicated module
Bluetooth®Bluetooth 4.0
Integrated WLANWLAN 802.11 a/b/g/n
GPS notesIncluding GPS functionality A GPS application that supports Windows Sensor and Location APIs must be purchased separately.
NFCIntegrated Near Field Communication
Power supplyAC adapter5V DC, (2A)
Rated voltage range100 V – 240 V (AC Input)
Rated frequency range50 Hz – 60 Hz
1st batteryLithium polymer battery 2-cell, 16.8 Wh, 4425 mAh
Runtime 1st battery2Over 5 hours
Battery notesBattery runtime information is based on worldwide acknowledged BAPCo® MobileMark® 2012 Lite Office Productivity Workload and MobileMark 2012 Office Productivity Workload bench mark testing which provides results that enable direct product comparisons between manufacturers. It does not guarantee any specific battery runtime which actually can be lower and may vary depending on product model, configuration, application and power management settings. The battery capacity slightly decreases with every charging cycle and over the lifetime.
Weight & EnvironmentalWeight (lbs)1.19 lbs.
ProductSTYLISTIC V535 Industrial
RoHS (Restriction of hazardous substances)
WEEE (Waste electrical and electronic equipment)
Power supplyCable10W5V AC Power Charger Cable
ManageabilityManageability technologyPXE boot supported (only in Windows Server® 2012 / 2012 R2 environment due to EFI x86 support)
SecuritySystem and BIOS SecurityTrusted platform module (TPM 2.0)
User SecurityBIOS security
Model                 Sensor                                      FUJITSU PalmSecure-F-Pro
Reading systemReading by near-infrared light
Scope of captureEntire palm
Capturing distance40 to 60mm (Enrollment)
35 to 70mm (Authentication)
DimensionsWidth 29 x Depth 29 x Height 13mm
WeightBelow 12 g
Voltage of Power supply4.4 to 5.4 V
Current consumption500 mA (Max at normal-power mode) 900 mA (Max at high-power mode)
Power saving mode50 mA (Max)
Power consumption2.5 W (Max at normal-power mode)
4.5 W (Max at high-power mode)
Power sourceProvided by the USB Interface cable
Host interfaceCable Length included 1 m
Max length supported is 4 m
Interface connectorSeries “Micro-B” plug (with 5 pins)
Installation environmentInstallation angleFull direction
Temperature-40 to 85 degrees Celsius
Humidity20 to 90%RH
Material of the surface of Sensor unitGlass
Encryption methodAES (Length of cryptography key more than 128 bit)
Authentication rateFRR: 1.00% (no retry)
FAR: Below 0.00001%
Applicable StandardElectro magnetic wave standardVCCI ClassB, FCC ClassB, EN ClassB
Safety StandardUL60950-1, EN60950-1
Environmental RegulationConforms to RoHS and WEEE
Warranty1 Year
