Fujitsu G960
Multi-Denomination, High Capacity Bill Recycling Unit
High capacity, back office cash management unit

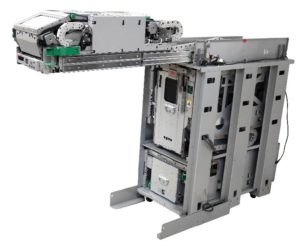

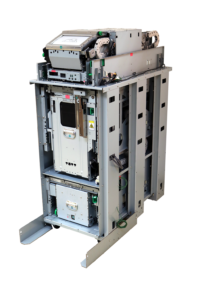

The G960 bill recycling unit sets the new standard for capacity, speed, and reliability in an affordable back-office cash management component. It features a modular design that includes the top assembly with large capacity pocket- style acceptor and dispenser, and up to three roll storage for reservoir and escrow. The middle assembly contains up to eight recycling cassettes, and an optional bottom assembly acts as a large-capacity collection box containing up to 7,200 notes for access by entrusted personnel or CIT services.
High capacity, back office cash management unit
The G960 bill recycling unit sets the new standard for capacity, speed, and reliability in an affordable back-office cash management component. It features a modular design that includes the top assembly with large capacity pocket- style acceptor and dispenser, and up to three roll storage for reservoir and escrow. The middle assembly contains up to eight recycling cassettes, and an optional bottom assembly acts as a large-capacity collection box containing up to 7,200 notes for access by entrusted personnel or CIT services.
Explore Fujitsu G960
- Rapid ROI and lower cost of ownership by more efficiency managing the highest capacity cash-in-transit programs in multiple verticals
- Accurate and fast cash handling of all deposited media, regardless of fitness, ensuring your program stays up and running
- Empowers store associates to clear jams caused by out of specification or unrecognized items, lowering your service costs and down time
- Manages the quality of notes by accepting and separating unfit currencies, identifying and capturing counterfeit, while dispensing only fit currency to end customers
- Modular assembly approach allows integrators and OEMs to offer split vault design to permit only authorized personnel access to certain areas of recycler, protecting chain of cash ownership
- Intelligent banknote traceability ensures more accurate banknote tracking and prevents fraud, ultimately saving the customer time and money
- On-board, non-volatile memory enables deployer to monitor, detect and facilitate predictive and preventative diagnostics
The G960 features Fujitsu’s world-class bill validation technology and cash transportation that can easily accept, denominate, image, sort, and store mixed new or used paper or polymer notes at up to 10 notes per second.
- Highly flexible, best-in-class bill recycling technology for high capacity, back office currency solutions
- State of the art, Fujitsu-patented bill validation technology that verifies, captures image, and accurately sorts all deposited and dispensed media
- Completely accessible cash transport in the top assembly, the middle recycle assembly, and in the optional bottom collection box
- Recycles up to eight denominations supporting a capacity of up to 22,200* notes processing at a speed of up to 10 notes per second
- Lower optional collection box separated from top module and recycled module assembly
- On-board intelligence for key components
Specifications
| Dimensions (W x D x H) | 362mm x 863mm x 1,147mm |
| Weight (w/o bills) | Approx. 132kg |
| No. of Recycler Cassettes | 5 Full-sized recycle cassettes |
| No. of Recycle Denominations | 4 standard; Up to 8 with small cassette |
| Cassette Configuration | Full-sized 342mm (3,000 bills) Small-sized 74mm (600 bills) |
| Collection Box Capacity | 7,200 Bills |
| No. of Bills per Transaction | Dispense: 250 Bills (500 option) Deposit: 250 Bills |
| Counting Speed | 8 Bills/sec 10 Bills/sec. (option) |
| Acceptable Media Range | Short Edge: 60~86mm Long Edge: 120~182mm |
| Total Bill Capacity | Max. 22,200 Bills |
| Bill Thickness Tolerances | 0.09~0.20mm |
| Interface Specifications | USB 1.1 Full Speed (12Mbps.) |
| Electrical Power Requirements | DC +24V (+10%, -10%) Avg. 24.5A Peak 33A |
| Temperature | Operation: 5°C to 50°C Stop State: 5°C to 50°C |
| Relative Humidity | Operation: 20% to 80% Stop State: 10% to 90% |
| RoHS Compliance | Yes |
| UL Compliance | Yes |
Data Sheet
Fujitsu G960
The G960 just may be the perfect complement to OEM and integrators looking for a cash handling component for teller assist, ATMs, bill payment or back-office cash management systems. In other words, the G960, in its various configurations, is the ideal OEM currency handling unit for almost any environment that handles large sums of cash. Contact us today and see how the Fujitsu G960 can help you enhance your in-store technology solutions.
Data Sheet
Fujitsu G960
The G960 just may be the perfect complement to OEM and integrators looking for a cash handling component for teller assist, ATMs, bill payment or back-office cash management systems. In other words, the G960, in its various configurations, is the ideal OEM currency handling unit for almost any environment that handles large sums of cash. Contact us today and see how the Fujitsu G960 can help you enhance your in-store technology solutions.
Talk to an industry expert
Explore Fujitsu G960 with one of our cash management solutions experts. Contact us to learn more.
