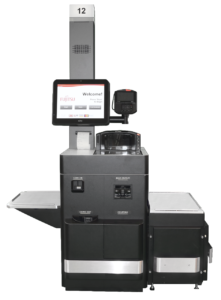

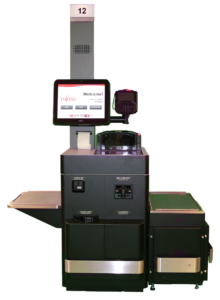

U-SCAN Elite
More than 20 years after transforming retail with the first self-checkout solution, Fujitsu continues its commitment to innovation with our sixth-generation self-checkout device, U-SCAN Elite. The U-SCAN Elite signals a change in the concept of self-checkout design. Where these once bulky devices were highly integrated systems with limited options, U-SCAN Elite is designed from the ground up for maximum flexibility in available options and configurations. With its clean lines and minimalized aesthetic, the U-SCAN Elite embodies modernity in any retail environment without intimidating or boring customers. After all, why be ordinary, when you can be Elite?
The U-SCAN Elite’s forward-thinking design ensures that as the speed of change in retail accelerates, the U-SCAN Elite can adapt with it. Fujitsu prides itself on maintaining and upgrading the largest fleet of legacy SCO systems in the world, many still in service 20 years later. With no forced upgrades and ongoing support, retailers choose Fujitsu knowing their investment is secure and respected. The U-SCAN Elite was purposefully engineered to simplify upgrading and modifying the device well into the future, without sacrificing the build quality that has established our heritage reputation.
- Smallest footprint of any full capacity recycling SCO on the market
- Industry-leading Fujitsu cash and coin recycling devices
- Designed for a multitude of configurations
- Hybrid configurable for front-end flexibility
- U-Scan software
- A.I. ready
- Common cash devices across all Fujitsu S3 payment solutions
SDKFujitsu Control Library (Optional)Electrical Requirements100-240V AC; 3A; 50/60 Hz
| Dimensions | 520mm x 721mm x 1761mm |
| Weight | 170kg Approx. |
| CPU | Intel 7th Generation Kabylake Core i5-7500T Memory: 8GB Standard memory; expandable to 16GB Storage: 256GB Solid State Drive |
| Ethernet | 1 x 10/100/1000 LAN |
| Storage | 256GB Solid State Drive |
| Ethernet | 10/100/1000 LAN |
| Inputs/Outputs | 3 x 12 V P-USB 1 x 24 V P-USB On-board Video (VGA) 3 x USB 3.0 Ports |
| Display | 15” Color Touch Screen Projected Capacitive Multi-Touch (10 point Touch) 1024 X 768 Resolution |
| Scanner Scale | High performance 1D and 2D bar code bioptic scanner (EAS supported) Maximum Static Weight: Up to 300lb / 136 kg depend on model |
| Printer | High Speed Thermal Printer |
| Lane Light | White color lane number light Tri-color indicator light |
| Bill Recycler (GSR50) | Suggested configurations: 2R + 1D R = Recycling cassette D = Deposit cassette 2 Rollers per Recycling cassette, up to 4 denominations |
| Recycle Cassette Capacity | 240 Bills total capacity (Approx.) |
| Deposit Cassette | 1,500 Bills per cassette (Approx.) |
| Deposit Volume | 50 Bills per transaction |
| Deposit Speed | 3 Bill/1 sec. 20 Bills/10 sec. |
| Dispense Volume | 20 Bills per transaction |
| Dispense Speed | 3 Bill/1 sec. 20 Bills/12 sec. |
| Total Coin Capacity | Up to 8 denominations (Euro) Up to 6 denominations (USD) Capacity: 4,200 Euro / USD mix (Approx.) Single Coin Input Dispense Speed: 4 Coins/sec. |
| Operating System | Windows10 2019 OS |
| Temperature Operation | Operation: 32°F to 104°F (0°C to 40°C) Non-operating: 23°F to 122°F (-5°C to 50°C) |
| Humidity Operation | Operation: 10 to 90% non-condensing Non-operating: 8 to 95% non-condensing |
| Security Rating | Business Hours |
| Compliance | UL, CSA, FCC, RoHS, REACH, CE |
| Optional | Hand Scanner EFT Uninterrupted Power Supply Assist Shelf Bagging Module Coupon Box |
