U-SCAN BOLT™

Make self-service available at any touchpoint

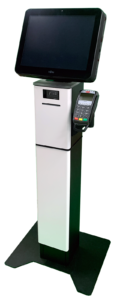

BOLT-pedestal-portrait

Self-Service Everywhere

Today’s retail store is a constantly evolving environment of emerging business challenges coupled with increasing operational demands. With self-service being called upon to solve these problems, retailers need a system that can adapt as needed. U-SCAN BOLT™ is designed to tackle a retailers’ need for flexible solutions that provide easily deployable self-service applications throughout their in-store environment. With Fujitsu, you can simply BOLT™ it and forget about it.

BOLT with HP pedestal

Self-Service Everywhere

Today’s retail store is a constantly evolving environment of emerging business challenges coupled with increasing operational demands. With self-service being called upon to solve these problems, retailers need a system that can adapt as needed. U-SCAN BOLT™ is designed to tackle a retailers’ need for flexible solutions that provide easily deployable self-service applications throughout their in-store environment. With Fujitsu, you can simply BOLT™ it and forget about it.

Explore U-SCAN BOLT™

Benefits

  • Compact footprint allows retailers to offer self-service at any touchpoint in the store
  • Sleek, minimalist design blends into any store decor
  • Pedestal and counter mounting options for maximum flexibility in terms of installation
  • Flexibility to be used from the simplest ticket-queuing applications to complex quick-service solutions
Features

  • Multiple mounting configurations simplifies deployment
    • Pedestal, Counter-top
  • Unified components reduces TCO while increasing reliability
    • Common with Fujitsu POS, SCO, Convertible Lanes
  • Compatible with all Fujitsu S3 solutions
    • QSS, SCO, SmartCASH, Verso, TaskForce, Integro, etc.
Specifications
Dimensions
Counter-Top 376.9mm (14.84in) W x 602mm (23.7in) H x 242mm (9.5in) D
Pedestal 376.9mm (14.84in) W x 1305mm (51.39in) H x 405mm (15.95in) D
CPU
CPU Type Intel 7th Generation Kabylake Core i5-7500T
Memory 8GB Standard memory; expandable to 16GB
Storage 256GB Solid State Drive
Ethernet 10/100/1000 LAN
Inputs/Outputs 3 x 12 V P-USB 1 x 24 V P-USB 2 x USB 3.0 Ports (rear) 1 x USB 3.0 Port (front) 1 x Audio Jack 1 x On-board Video (VGA) 1 x Cash Drawer Port
Display 15” Color Touch Screen Projected Capacitive Multi-Touch (10-point touch) 1024 x 768 Resolution
Scanner Datalogic GFS4470 Imager, 1D, 2D, PDF, QR
Printer Fujitsu FP2100 80mm Receipt, 300mm/s
LED Lighting LED Lighting Platform
Assist Shelf Optional side shelf, left or right mount
Operating System Windows Embedded 7, 8, and Windows 10 (Linux option available)
Power
Voltage 100-240 V AC
Frequency 50/60 Hz
Power dissipation 90 W
Voltage 120VAC, 200W (optional)
Environment
Operating Temperature 32°F to 104°F (0°C to 40°C) 15° C/Hr (Non-Condensing)
Non-operating Temperature 23°F to 122°F (-5°C to 50°C)
Operating Relative Humidity 10 to 90% non- condensing
Non-operating Relative Humidity 9 to 95% non- condensing
Bolt preview

Data Sheet

Fujitsu U-SCAN BOLT™

With its minimalist design and small footprint, U-SCAN BOLT allows for self-service to be implemented anywhere while flawlessly blending into any store décor and layout. U-SCAN BOLT offers multiple configurations, including pedestal and countertop mounting options, so it is simple to deploy anywhere self-service is needed.

Bolt preview

Data Sheet

Fujitsu U-SCAN BOLT™

With its minimalist design and small footprint, U-SCAN BOLT allows for self-service to be implemented anywhere while flawlessly blending into any store décor and layout. U-SCAN BOLT offers multiple configurations, including pedestal and countertop mounting options, so it is simple to deploy anywhere self-service is needed.

Talk to an industry expert

Explore Fujitsu U-SCAN BOLT™ with one of our retail technology experts. Contact us to learn more.
